Features

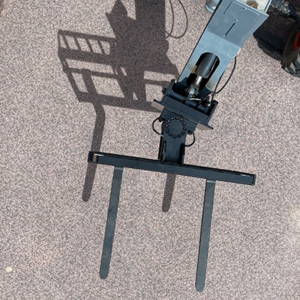

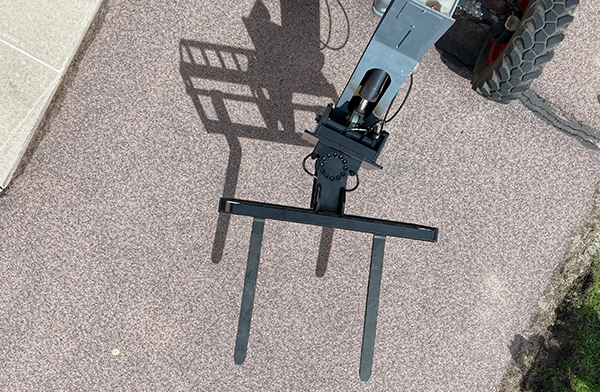

- Full 180 degrees of articulation…..very smooth left and right swing for load handling stability

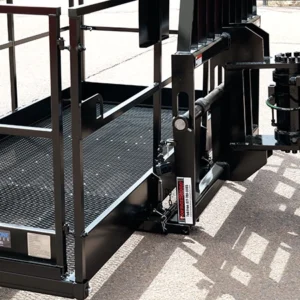

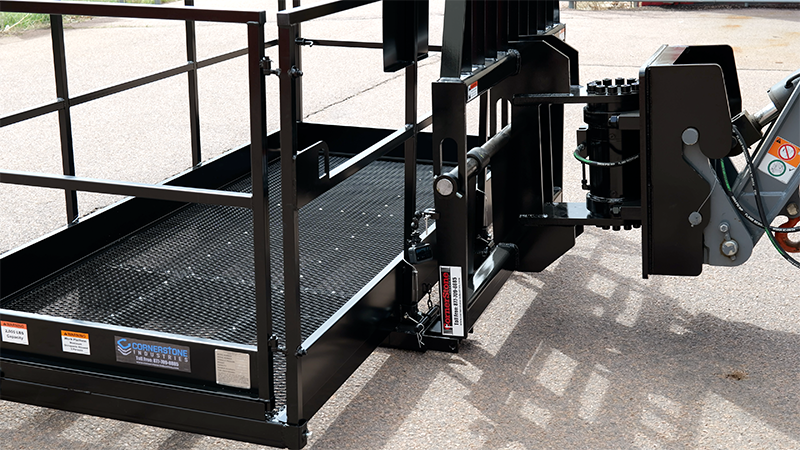

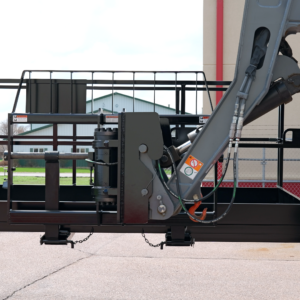

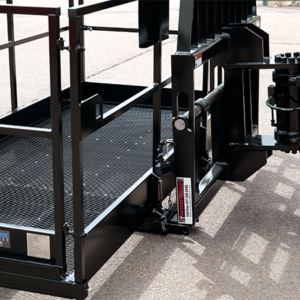

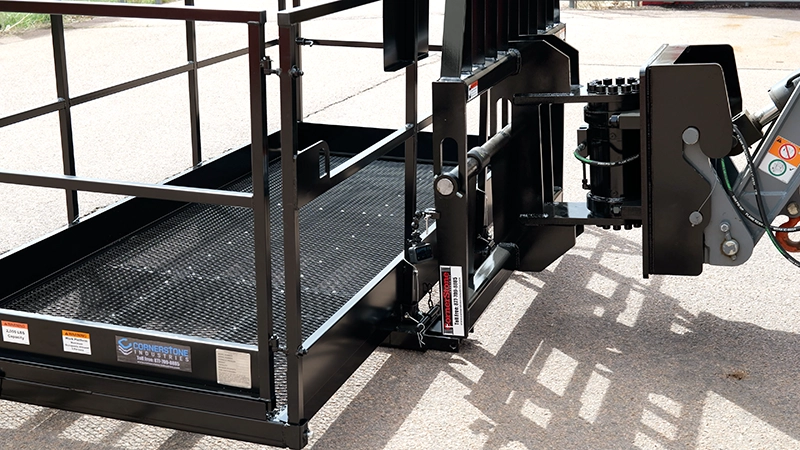

- Great for use with fork mounted man baskets, palletized loads, long materials, lumber, piping, conduit, steel beams & much more
- Left & right swing controlled by auxiliary hydraulics joystick in the forklift cab
- Our 180 degree swing carriage has drift-free holding power……even on sloped terrain
- Articulation adds versatility to your telehandler to maximize ROI with our 180 degree swing carriage

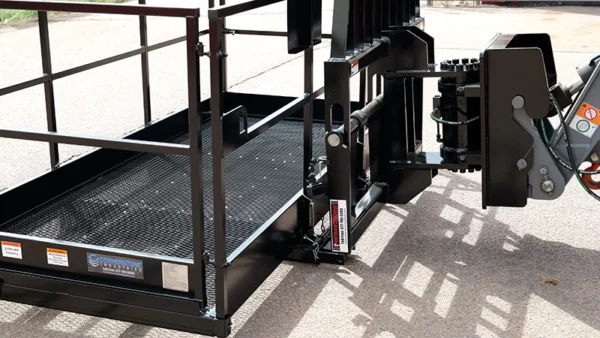

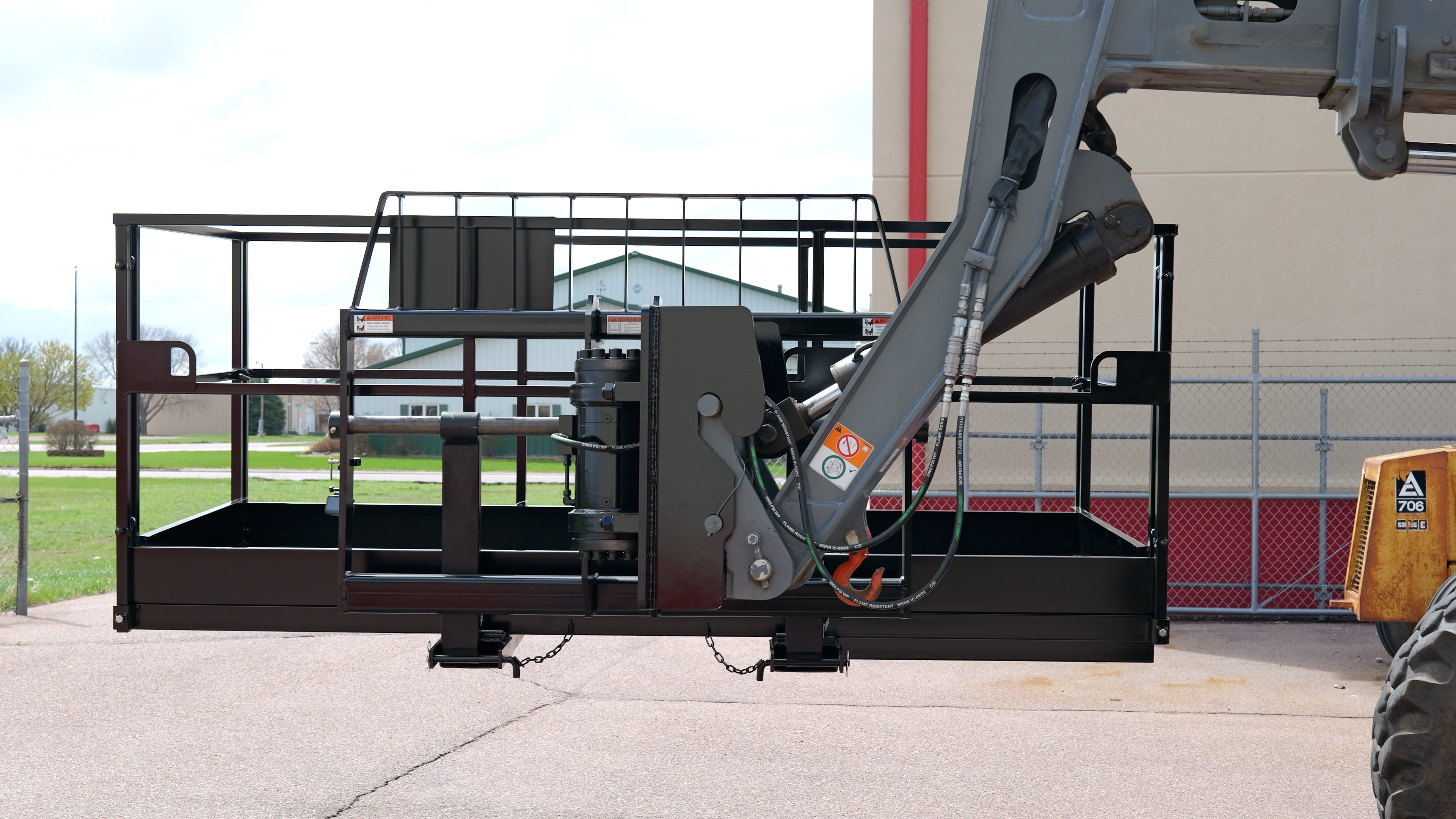

- Get into the tight spots with materials & man baskets – no need to rent a boom
- 180 degree swing carriage allows you to run parallel to work surface, less repositioning of lift saves time & money
- Save time and increase worker safety while stocking upper level floors of projects
- 60° wide carriage standard, custom sizes available
- Customized mounting plates to match your telehandler
Design

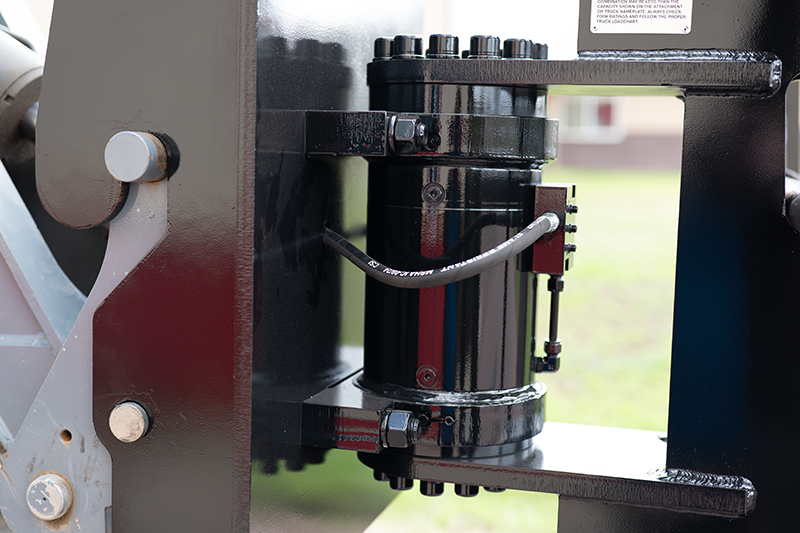

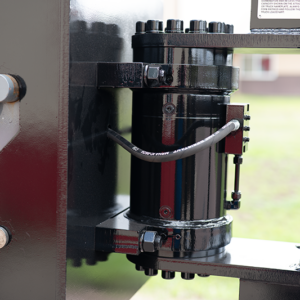

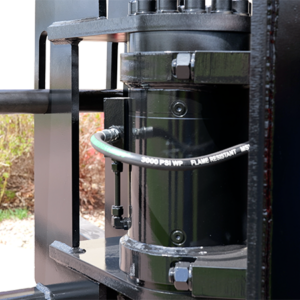

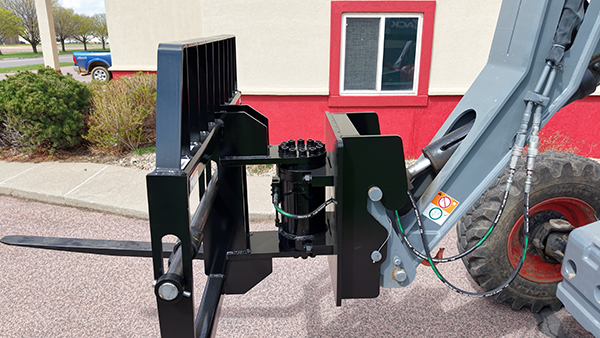

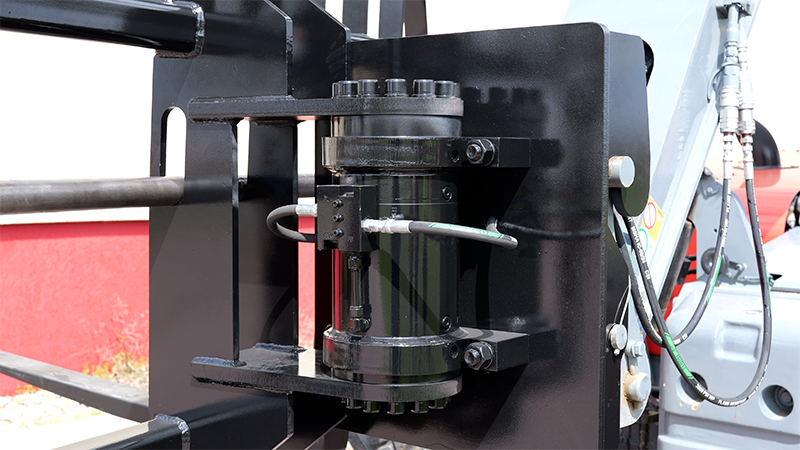

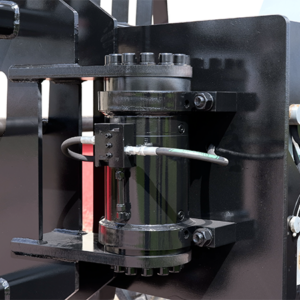

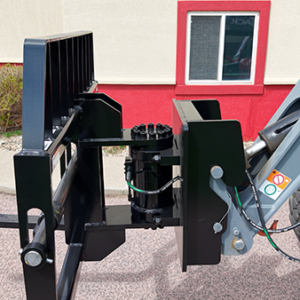

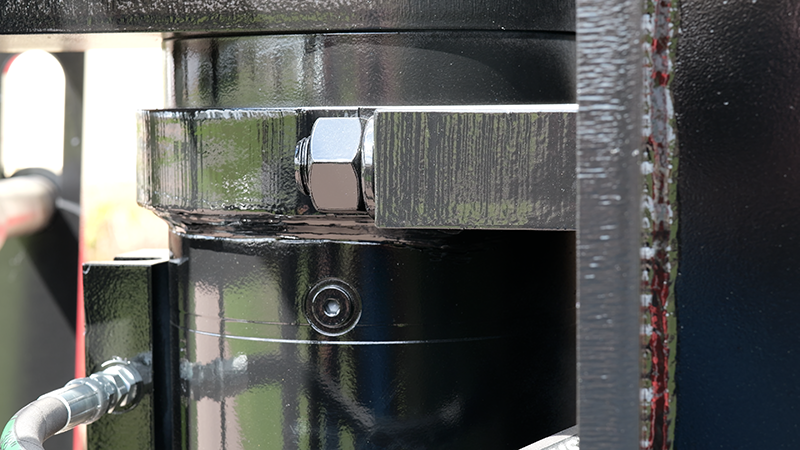

- The Sidewinder 180 degree swing carriages’ rotary actuator design is ultra compact and makes it one of the strongest and safest 180 degree swing carriages available today for a variety of heavy duty applications
- Swing carriage load capacities of 8,000, 10,000, 12,000, up to 16,000 lbs
- Large internal nylon composition bearings support heavy radial moment and thrust loads without additional external bearings on our 180 degree swing carriage motor providing years of use

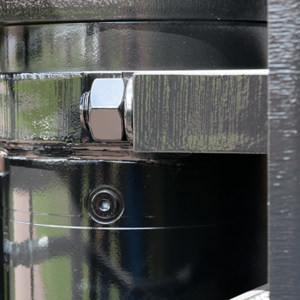

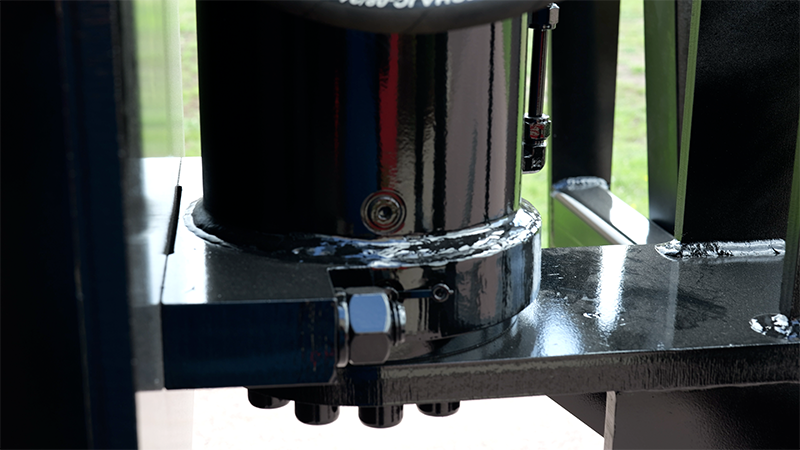

- Straddle mount: the load is supported at both ends of the shaft creating superior strength and less load stress, Sidewinder II is built to withstand heavy duty construction, commercial job site, mining, power plants and industrial applications

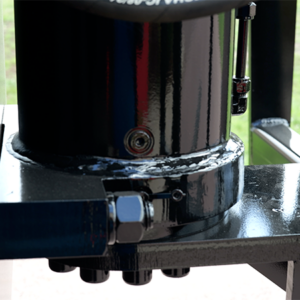

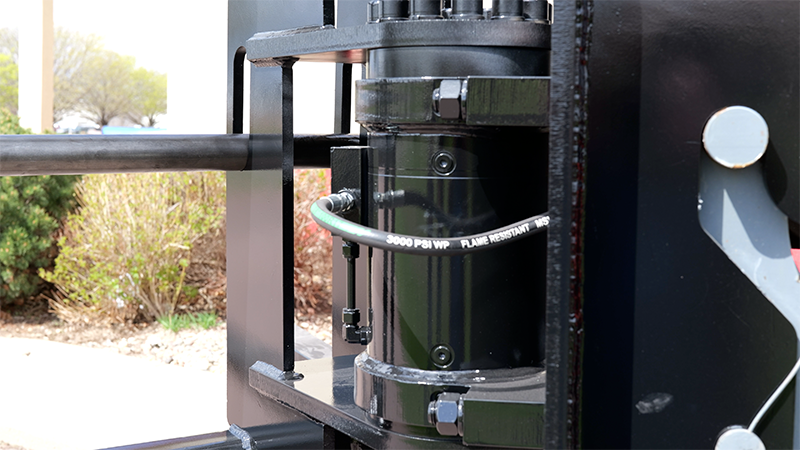

- Corrosion resistance: tough exclusion seals minimize ingress of dirt and moisture; grease ports enable contaminants to be flushed from bearings; no exposed gears or teeth increasing actuator life and safety; sealed systems protects against harsh elements and conditions allowing the 180 degree swing carriage to be used in various environments and conditions
- High shock resistance: innovative sliding spline operation distributes loads equally over all teeth resulting in outstanding resilience to shock loads and unparalleled holding capability making our 180 degree swing carriage one of the strongest units available
- Built in braking system protects against unwanted swing if there is a loss of hydraulic pressure, Sidewinder 180 degree swing carriage has undergone laboratory testing and achieved a 3 to 1 safety factor for load ratings

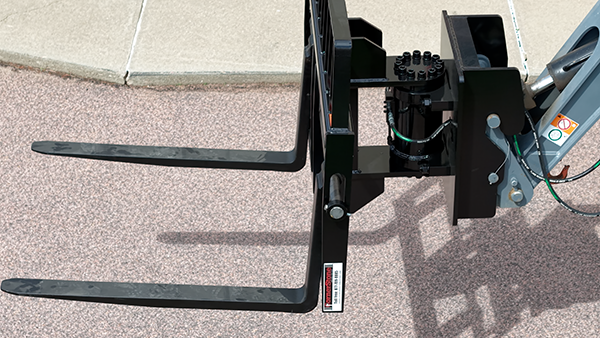

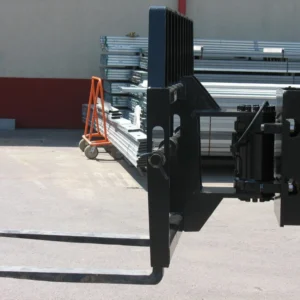

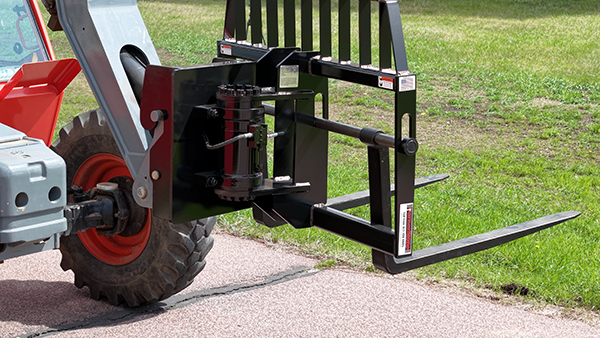

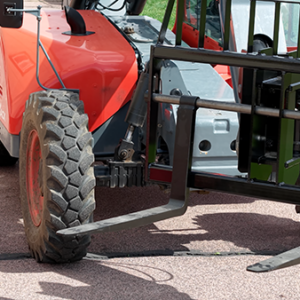

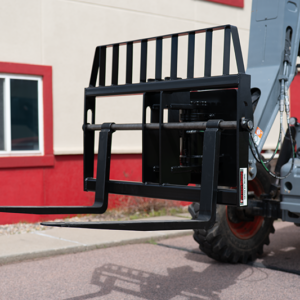

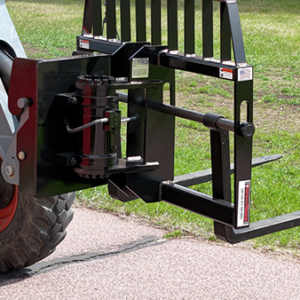

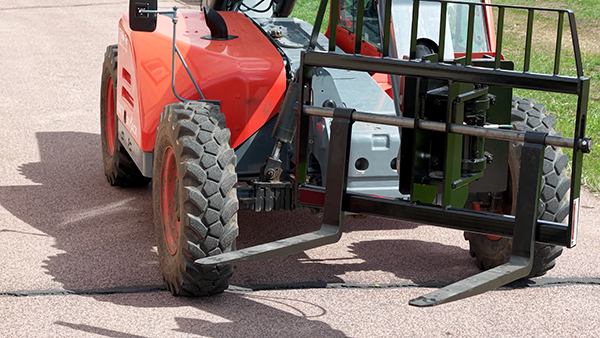

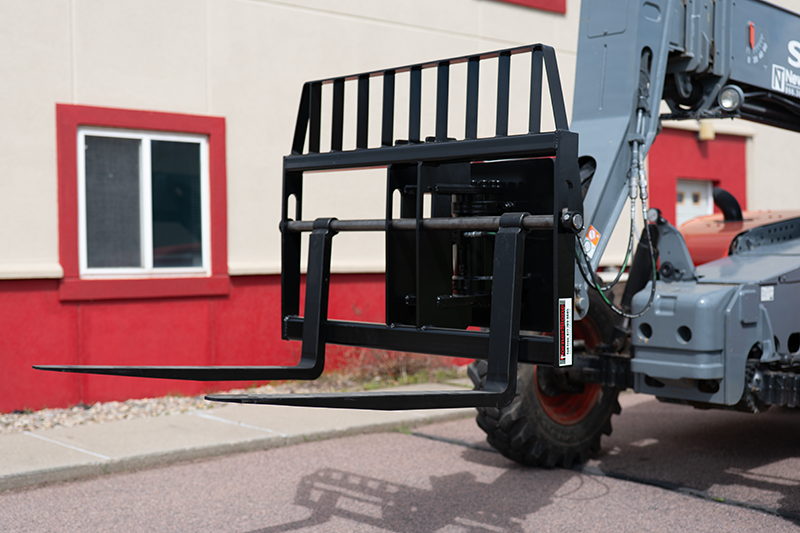

- Heavy Duty 180 Degree Swing Carriage for Telehandlers
- Professionally engineered, laboratory tested, contractor approved!
