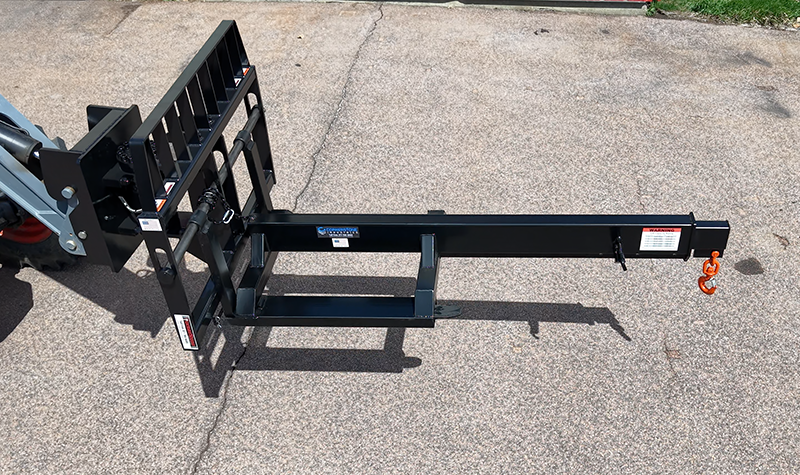

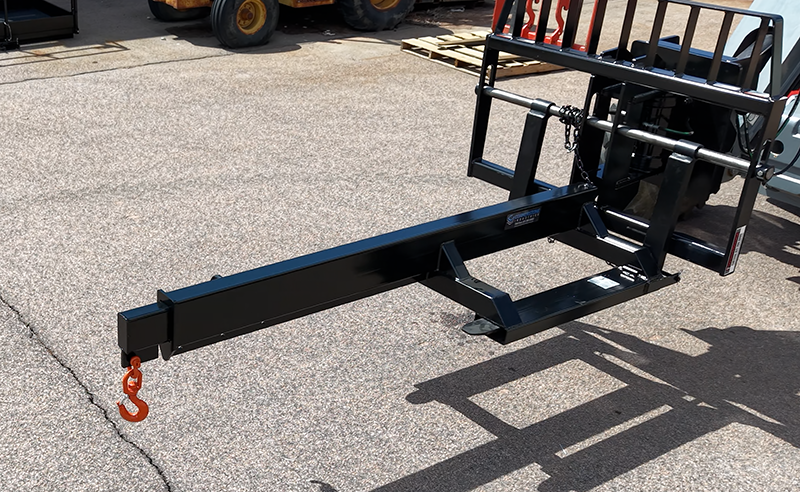

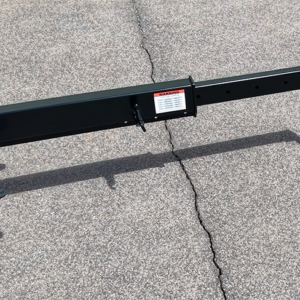

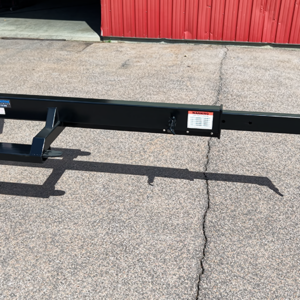

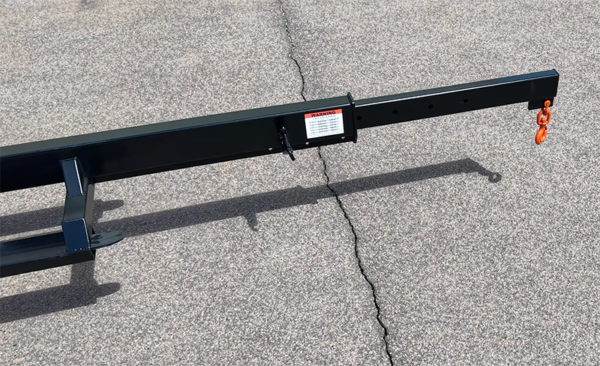

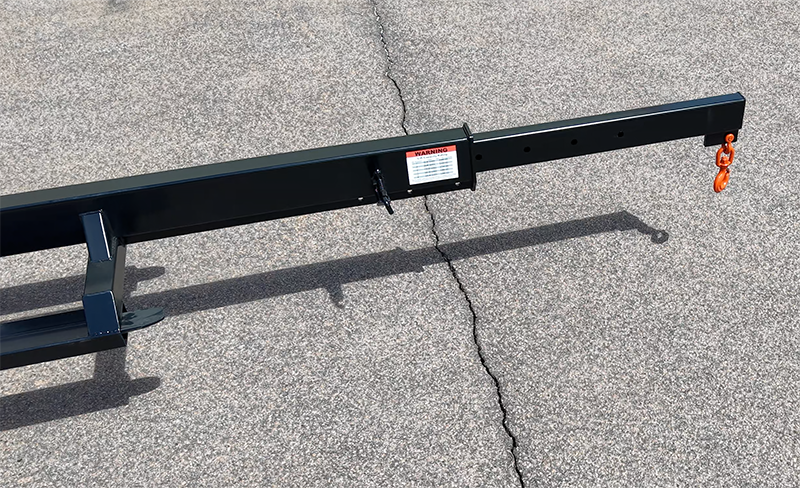

- Telescopic truss jib manually adjusts from 6’9″ to 12″, spring loaded lock mechanism

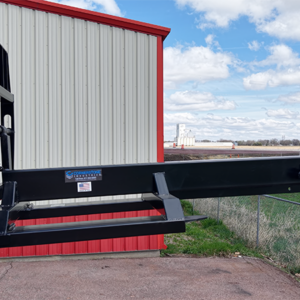

- Low profile compact design great for transportation to and from job site
- Nine different positions for adjustment and placement of the hook

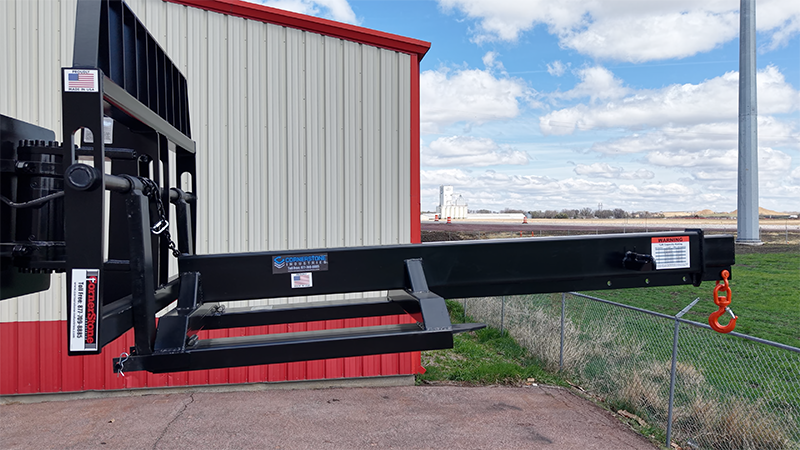

- Telescopic truss jib fits most types of telehandlers, forklifts, loaders, and more

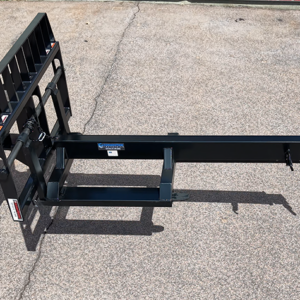

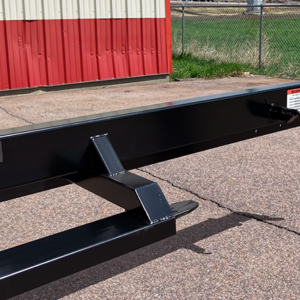

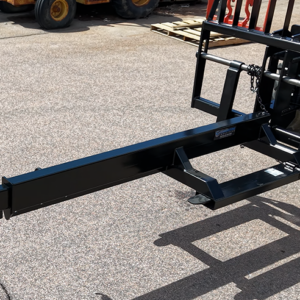

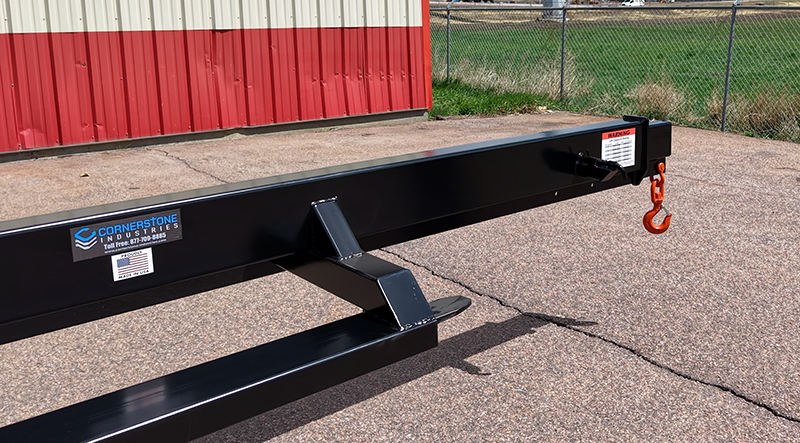

- Our truss jib boom easily mounts on your fork tines and includes a safety restraining chain

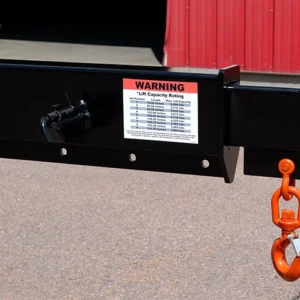

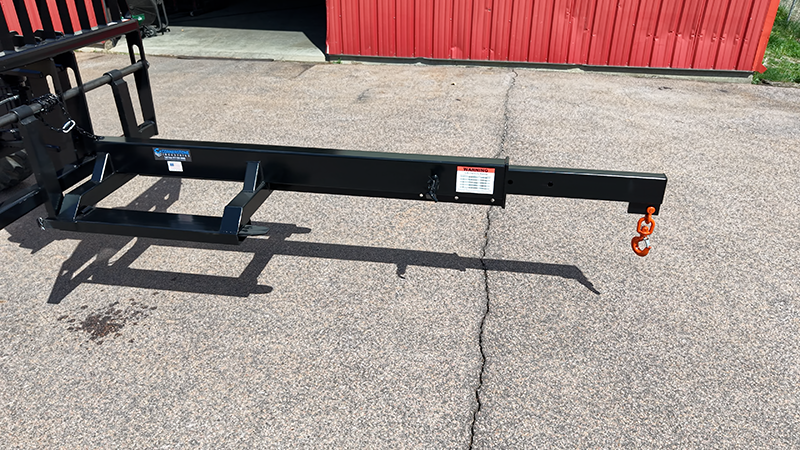

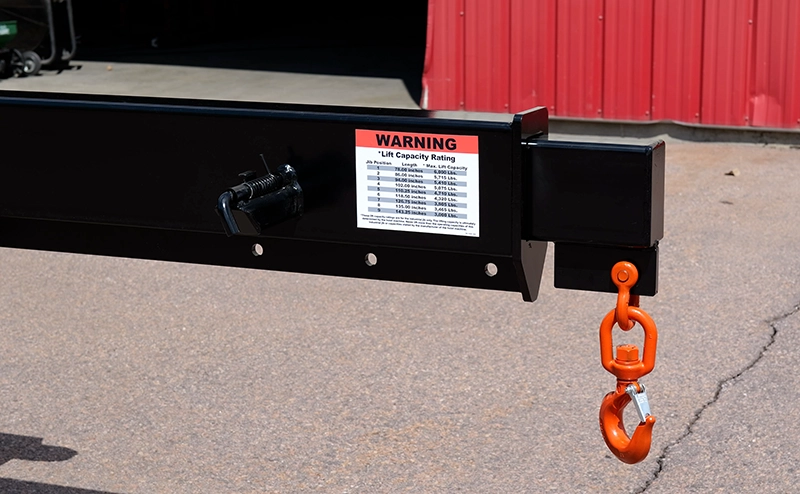

- Swivel hook with safety closure latch included with all telescopic jibs
| Jib Position | Length | Max Lift Capacity* |
| 1 | 78″ | 6,000 lbs |
| 2 | 86″ | 5,715 lbs |
| 3 | 94″ | 5,410 lbs |
| 4 | 102″ | 5,075 lbs |
| 5 | 110.25″ | 4,710 lbs |
| 6 | 118.5″ | 4,320 lbs |
| 7 | 126.75″ | 3,905 lbs |
| 8 | 135″ | 3,465 lbs |
| 9 | 143″ | 3,000 lbs |
*The load capacities reflected here are for the telescopic industrial truss jib only and do not in any way reflect the lifting capacity of the forklift.
